Basic Info.
Model NO.
DY-CKL600
Input Voltage
220V-240V
Power
600W
Shape
Tube
Warranty
3 Years
Housing Material
Aluminum
Life
50000h
LED Chips
Epistar
Certification
CE, RoHS
Lamp Material
Anti-Explosion Glass
Light Source
HID-High Pressure Sodium
Customized Service
Yes
Working Temperature(ºC)
-20 - 40
Lamp Body Material
Aluminum
Power Factor
0.9
Plant
Flowering Vegatable Tomato Cucumber Berry
Luminous Efficacy(μmol/J)
1.65
Pricinple
Simulate Sunshine Light
Transport Package
Carton or Pallet
Trademark
OEM
Origin
China
Production Capacity
1000/30 Days
Packaging & Delivery
Package Size
150.00cm * 20.00cm * 10.00cm
Package Gross Weight
5.000kg
Product Description
· KEY FEATURE & BENEFITS INCLUDE:
l Multi self-protections
l High efficacy electronic ballast
l Soft start technology
l Stable performance: quick start, no flicking,no acoustic resonance
l Good heat dispersion and silence working
l Easy assembly and install on-site
l Small Size
l OEM and ODM are available
· Application

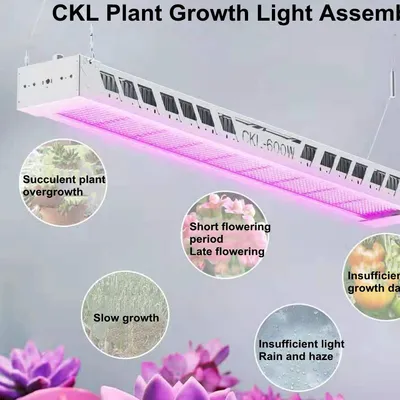

Commercial greenhouse horticulture lighting,flower and vegatables.
· Specification
| Technical Specifications | ||||||||||
| Model | 600W Electronic Ballast | |||||||||
| Rated Main Voltage | 230V | |||||||||
| Input Current | 2.74A | |||||||||
| Power Factor | ≥0.98 | |||||||||
| Input Frequency | 50/60Hz | |||||||||
| Actual Input Power | 630W | |||||||||
| THD | <10% | |||||||||
| Crest Factor | <1.7 | |||||||||
| Lamp Operating Voltage | 120V | |||||||||
| Working Performance | |
| Max Case Temperature | 70ºC/158ºF |
| Ambient Temperature | -20…+40ºC/-4…+104ºF |
| Ignition Voltage | 5KV |
| Protection Functions | End of Lamp Life Protection Short Circuit Protection Open Circuit Protection Ignition Failure Protection |
